How to setup IMAP email on Outlook 2013

Updated On:
4 June 2019
Documented By:
Roger

Step: 1

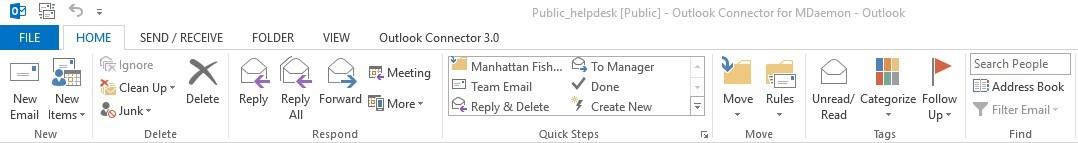

Launch Microsoft Outlook 2013. Click the File from the menu bar.

Launching Outlook 2013 clicking File from menu bar



Step: 2

In Account Information page, click the Add Account button.

Outlook 2013 Account Information page Add Account button



Step: 3

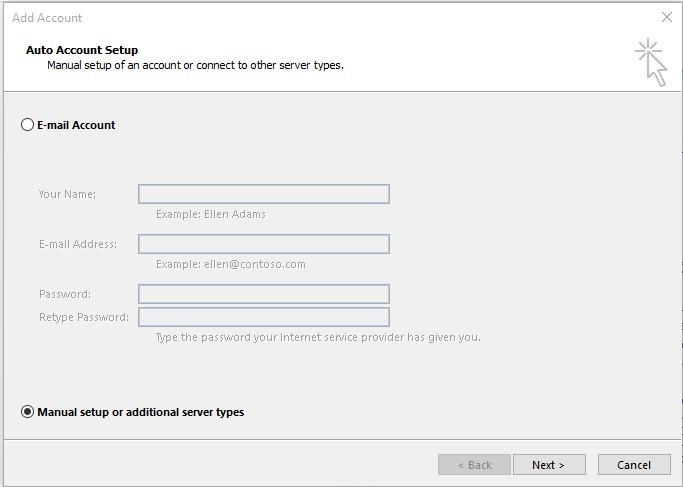

Select Manual setup or additional server types, and then click the Next button

Outlook 2013 selecting manual setup additional server types



Step: 4

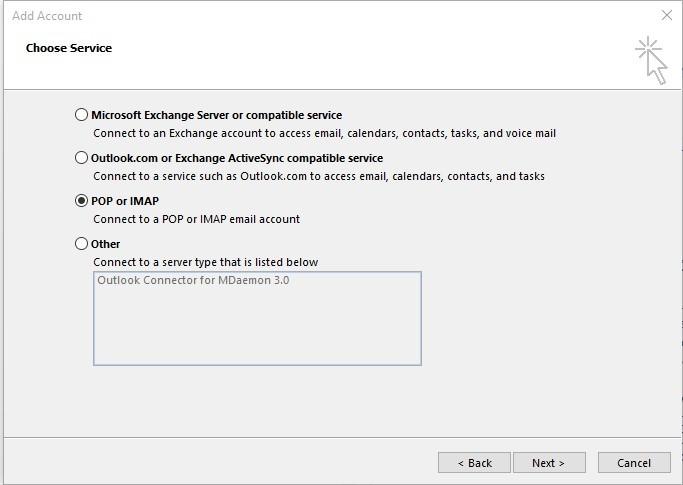

Select POP or IMAP, and then click the Next button.

selecting POP or IMAP account type



Step: 5

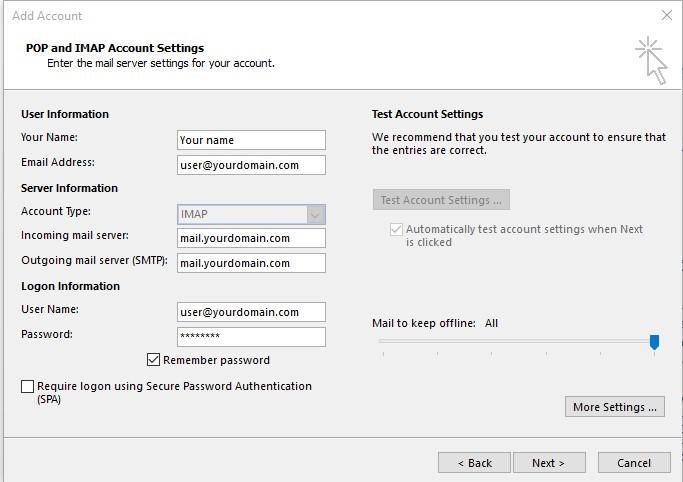

Fill in all the information required.

Account Type: IMAP

Incoming mail server: mail.yourdomain.com (your own domain mail name)

Outgoing mail server: mail.yourdomain.com

User Name: xxxxxxx@yourdomain.com (your email address)

Password: xxxxxxxx (Your own password)

After that, click on More Settings …  (*More setting allows you to change your port number)

IMAP account details username password fields



Step: 6

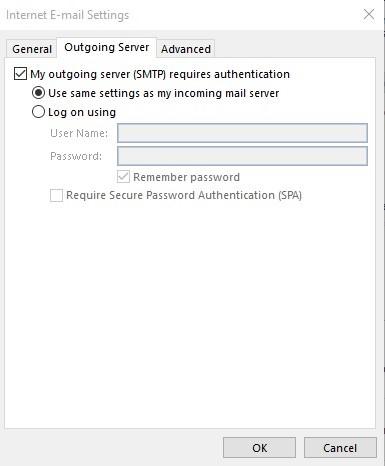

Under Outgoing Server tab, Tick the checkbox – My outgoing server (SMTP) requires authentication. Then select Use same settings as my incoming mail server.

outgoing server SMTP authentication checkbox



Step: 7

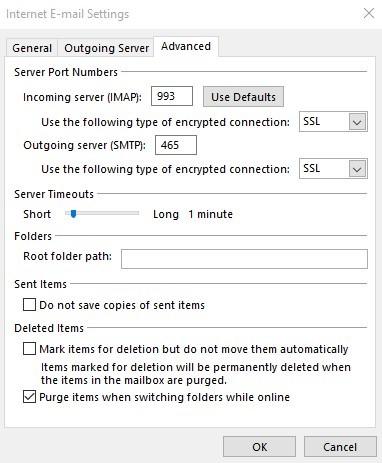

Under the Advanced tab, check for the port number.

Incoming server (IMAP): 993

Use the following type of encrypted connection: SSL

Outgoing Server (SMTP): 465

Use the following type of encrypted connection: SSL

After that, click the OK button

advanced tab IMAP port 993 SMTP port 465



Step: 8

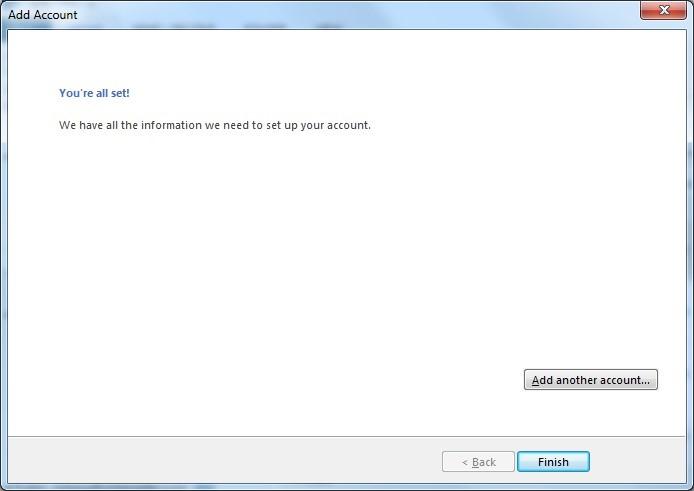

Let it verify your email account. Once finished click “Finish”

verifying IMAP email account clicking Finish

Email encryption with SSL

Secure Sockets Layer (SSL) is a method to encrypt traffic from sender mail server to the recipient mail server during transmission.

This prevents sniffing on your email login credentials, email messages, and attachments sent and received on the internet.

Once the email reached its intended recipient, it will be decrypted for viewing automatically.
